3 media items
Transit Performance Suspension Package
Topo 2.0 Lift + Falcon 3.3 — AWD/RWD
- Estimated time
- Full day
- Model
- Transit
- Year
- 2014–2026
- Van series
- 250
- Wheelbase
- 148
- Drivetrain
- RWD
- Engine type
- EcoBoost
- SKU
- 1SV.STR01
- Brands
- Van Compass
- Categories
- Suspension, Transit, AWD, RWD
Configure your van
Model
Year
Series / Weight Class
Wheelbase / Body Length
Drivetrain
Engine Type
Compatibility
-
Transit
Years
2014–2026
Van Series / Weight Class
250, 350
Wheelbase / Body Length
148, 148 EL
Drivetrain
RWD, AWD
Engine
EcoBoost, Non-EcoBoost
Single or dual rear wheel. 2015–2017 require the Motorcraft AD1145 strut mount (drill to 10mm).
About This Item
Overview
Van Compass Transit Performance Suspension Package (TOPO 2.0 Stage 2) providing approximately 2" of lift with Falcon 3.3 Fast Adjust rear shocks and front camber correction. Developed to work around AWD CV shaft constraints while improving ride quality and rear sag on loaded vans.
Includes
- Topo 2.0 Front and Rear Lift Kit

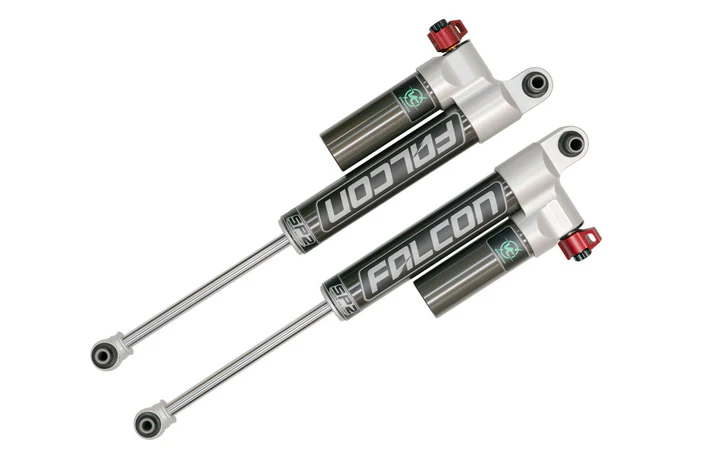

- Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)
- High Clearance Rear Shock Brackets
- Alignment Service
- Professional installation from Titan's expert automotive technicians
Product Description
Balanced Transit Suspension for Real-World Travel.
- Falcon 3.3 Fast Adjust shocks with the widest adjustment range in the class
- Precision camber correction plate + tuned coil spring for correct front lift geometry
- 2" billet aluminum rear block with bump stop spacers maintains rear suspension geometry
- Shock relocation brackets improve underbody clearance
- Designed specifically for AWD Transit constraints — not a RWD adaptation
- A mid-tier suspension upgrade — a step below the full Transit Lift Kit
The practical choice for AWD Transit owners who want to improve the ride without a full lift build.
Product Information
Warranty & Returns
Service Warranty
Work performed by Titan Vans is backed by our workmanship standards. Coverage terms may vary by service type and installed parts.
Parts & Installed Components
Installed parts may carry their own manufacturer warranty in addition to applicable service support.
Returns & Cancellations
Service appointments and installed-service purchases are generally not returnable once completed. Contact our team for scheduling or support questions before your appointment.
